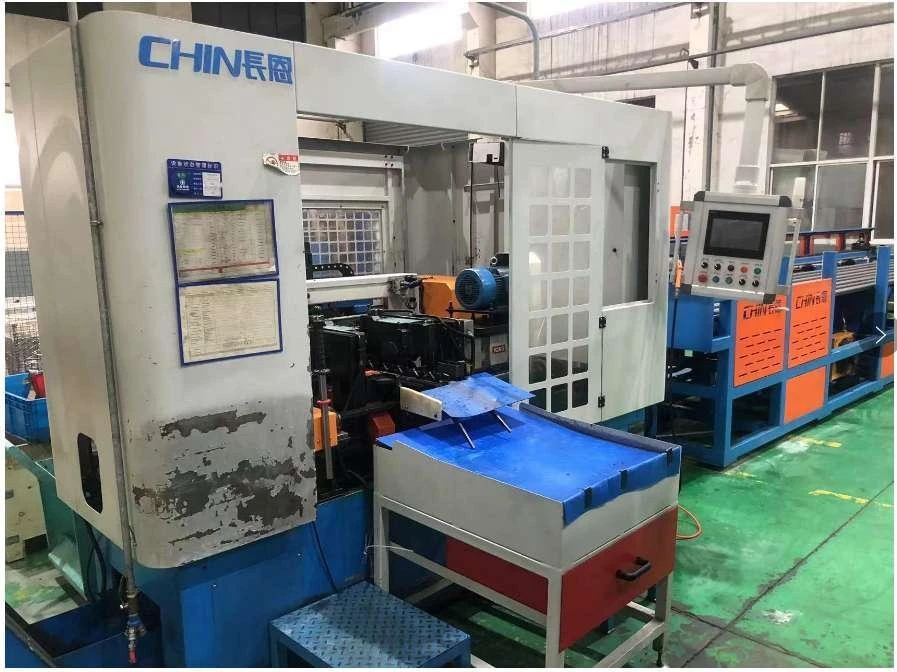

Cutting & chamfering
Specify the finished length, end condition and chamfer on your drawing.
Q235B · OD 32 / 38 mm
Cold-drawn welded
roller tubes.
Q235B tubes in four regular size combinations for roller components. Define the finished tube length, end features and inspection requirements for your assembly.
Discuss your roller tube ↗
MaterialQ235B
Outside diameter32 / 38 mm
Listed wall thickness1.8 / 1.9 mm
MATERIALS & DIMENSIONS
Four regular tube combinations.
Select a size to begin your enquiry with the material and dimensions already included.
| Steel grade | OD (mm) | Wall (mm) | Tube route | Your requirement |
|---|---|---|---|---|
| Q235B | 32 | 1.8 | Cold-drawn welded | Enquire about this size |
| Q235B | 32 | 1.9 | Cold-drawn welded | Enquire about this size |
| Q235B | 38 | 1.8 | Cold-drawn welded | Enquire about this size |
| Q235B | 38 | 1.9 | Cold-drawn welded | Enquire about this size |
OD × wall thickness, in millimetres. These are regular production examples. Length, delivery condition, tolerances and inspection requirements are agreed for each order.
YOUR ROLLER COMPONENT
Specify the part.
Define the finish.
Tell us the roller application and whether you require long-length tube, cut-to-length tube or further end machining. Material, tolerances and finishing are matched to your component drawing.
- Roller type, tube position and required length
- OD / ID, wall tolerance, straightness and runout
- Tube-end features, fitting dimensions and chamfers
- Surface condition, cleaning and product protection
FROM TUBE TO COMPONENT
Define the finishing route.
Combine the tube specification with the operations required for your part.

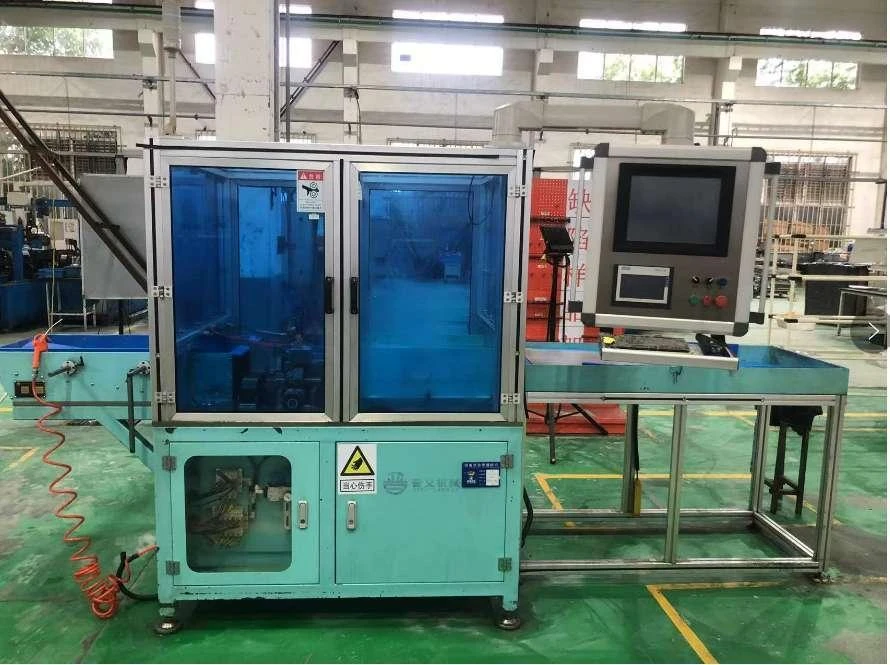

Dimensions & runout
Define the OD, ID or wall tolerance, straightness and part inspection criteria.

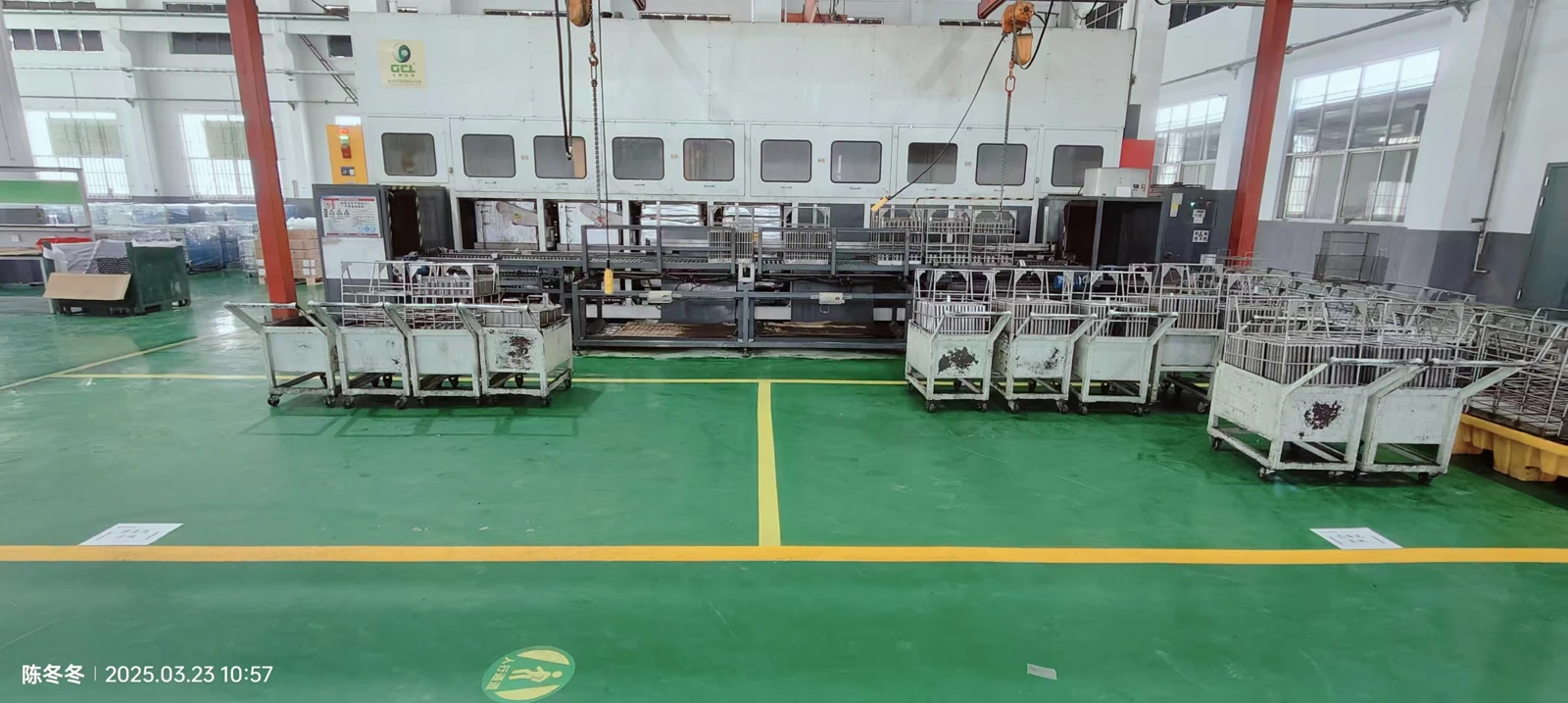

Surface & cleaning
Include the required surface condition, cleanliness and product protection.
ONE REGULAR SIZE IS ENOUGH TO START
Tell us about your tube component.
Send the size, material and approximate quantity. Add a drawing for tolerances or machined features.
